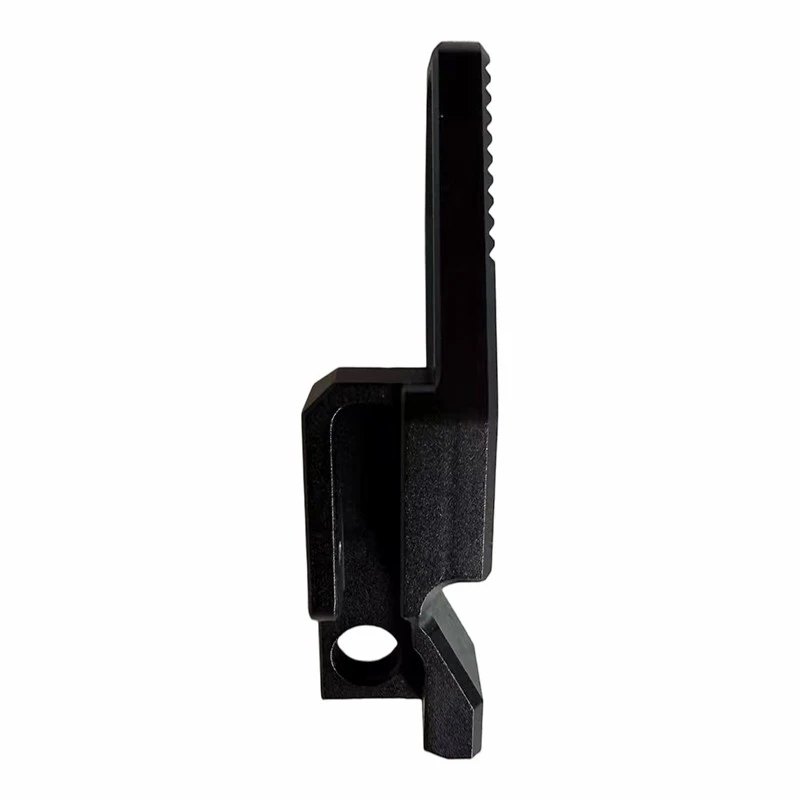

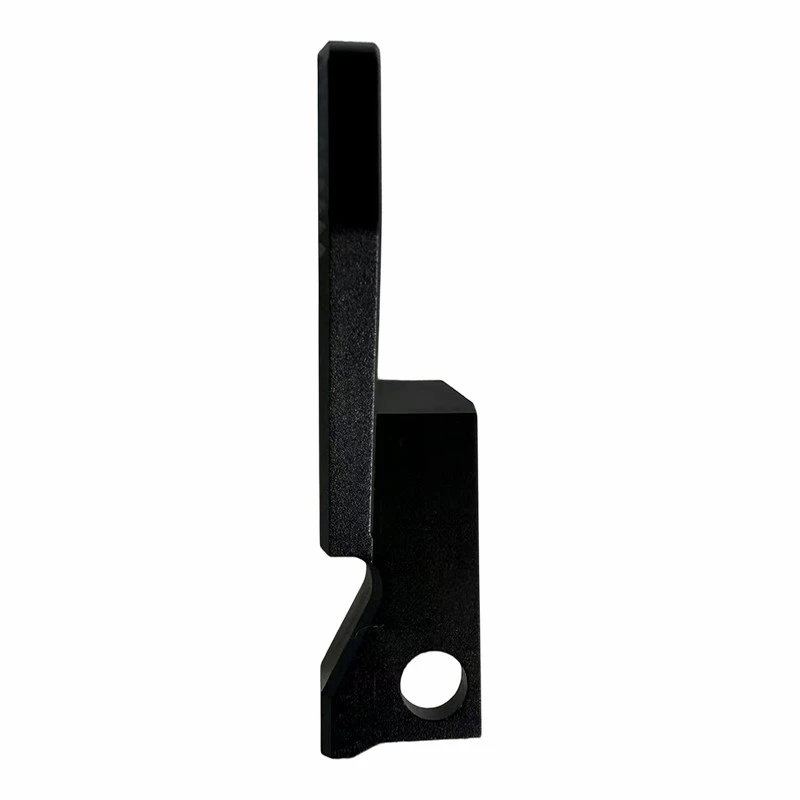

Optical Instrument Lens Wrench

6061 aluminum alloy integrated CNC milling forming, with a matte black hard anodized surface, wear-resistant, anti fingerprint, anti reflective, suitable for automation equipment and optical instrument operating components.

The top has anti slip rolling patterns, the middle has a sinking anti slip groove, and the bottom has a square plug-in positioning handle that is processed and formed in one go. All outer edges have an inverted R angle, and there are no burrs on the grip.

Lightweight, strong enough to withstand repeated manual movements; The black anode is not easily stained with glue or oil, easy to clean, and does not reflect light and interfere with the visual workstation.

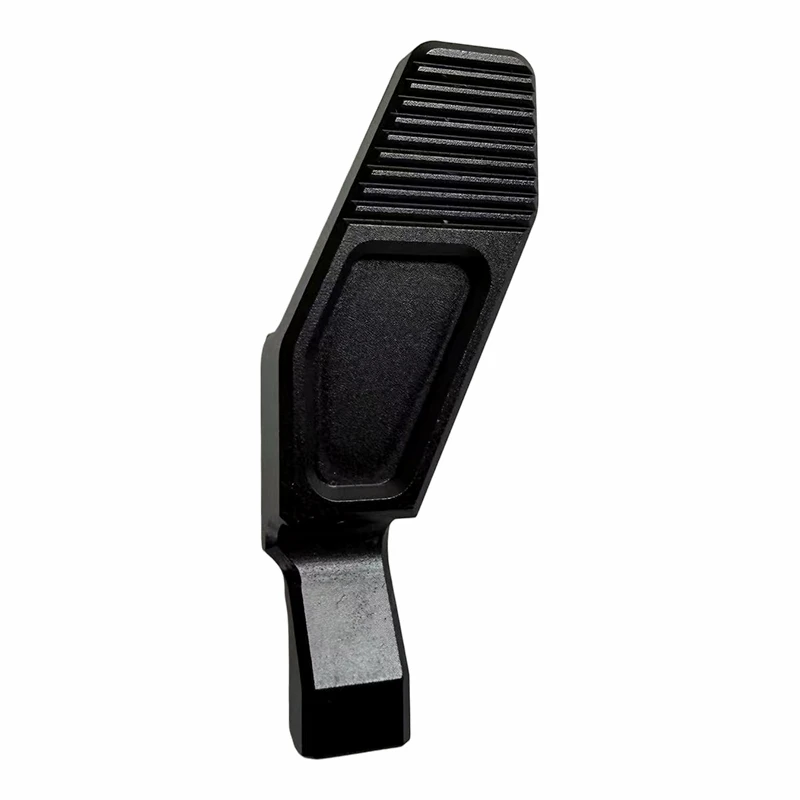

1. Top anti slip operation end

Parallel anti slip horizontal stripes: increase finger friction, frequent movement is not easy to slip;

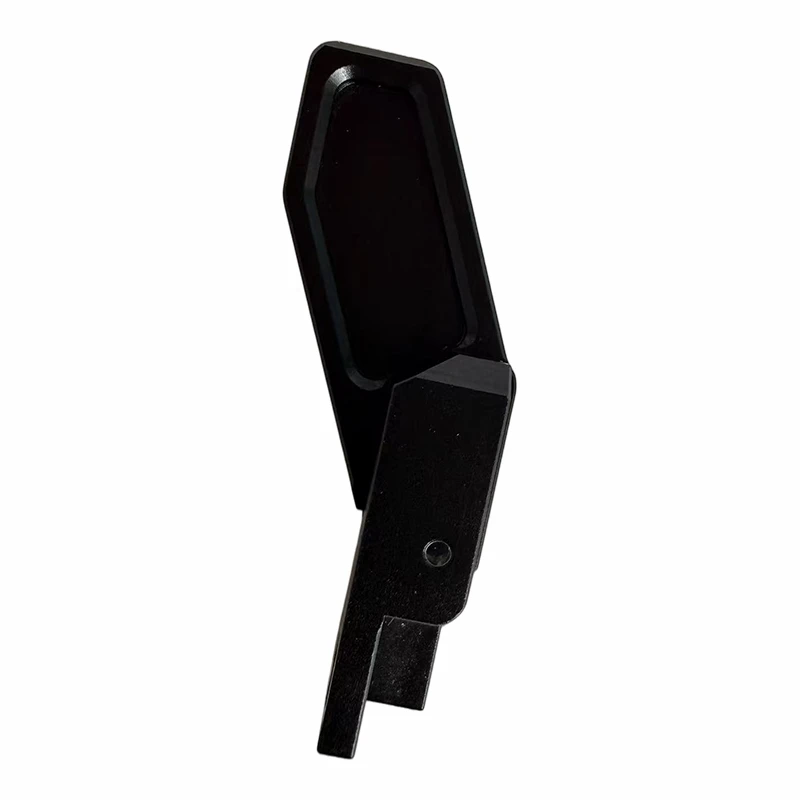

Middle sinking flat groove: limit fingers to prevent slipping during operation, while reducing overall thickness and weight.

2. Narrowing and bending transition section in the middle

The bent shape forms a lever labor-saving structure, which can complete the locking/unlocking action with small force, while avoiding surrounding valve bodies and pipelines to avoid operational interference.

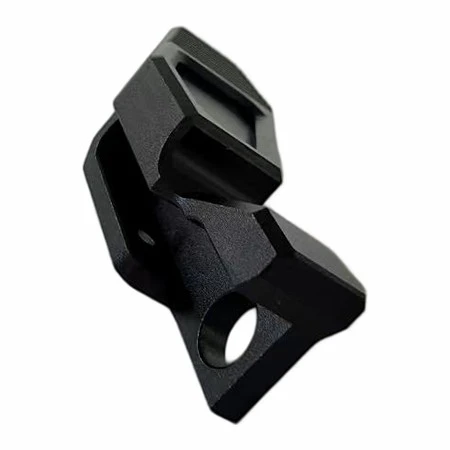

3. Bottom square plug-in positioning handle

Standard square tenon, inserted into the square slot of the valve body, clamping seat, and diversion valve block, matched with internal top screw locking, drives the internal valve core and locking block to complete:

Fluid valve: switch glue/gas path;

Clamping mechanism: clamp/release the dispensing nozzle and lens assembly.
