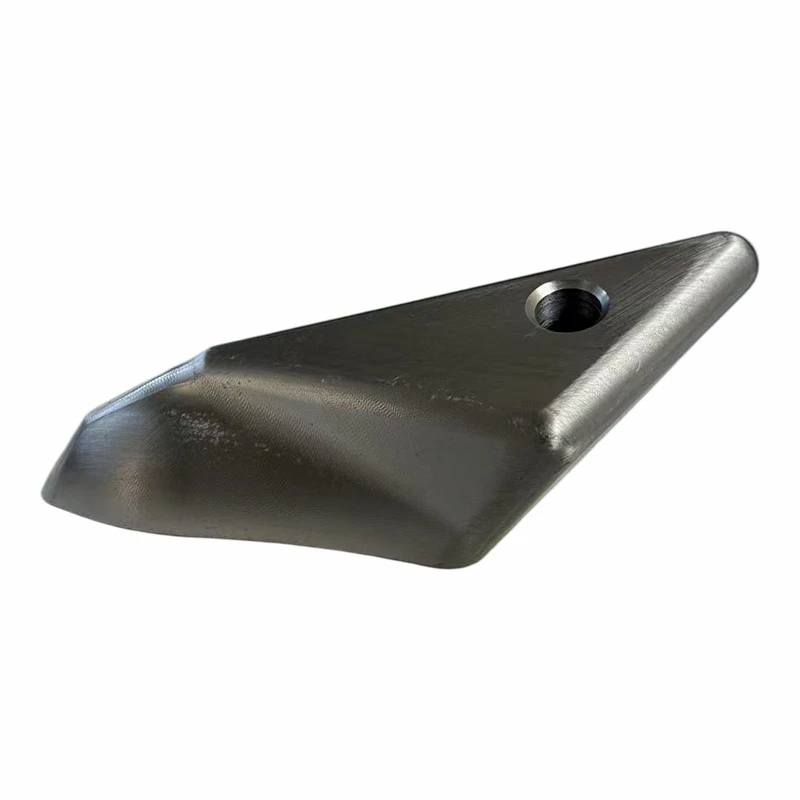

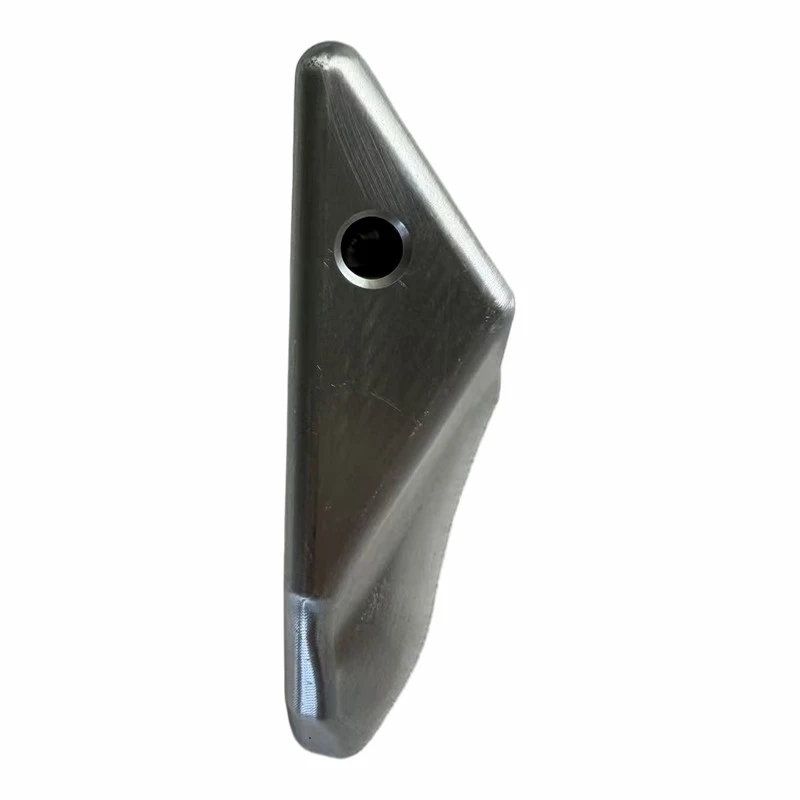

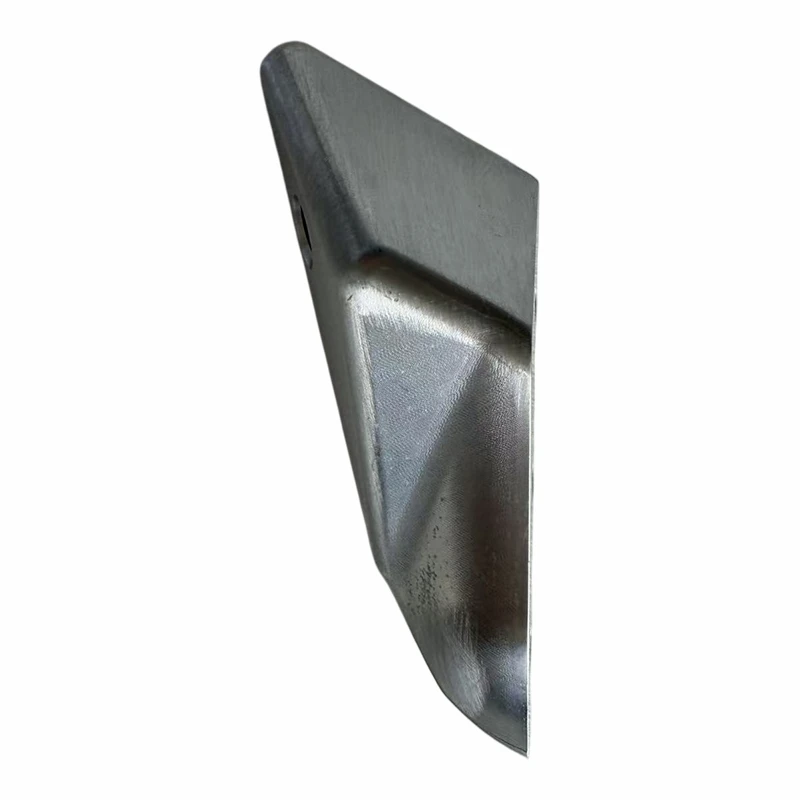

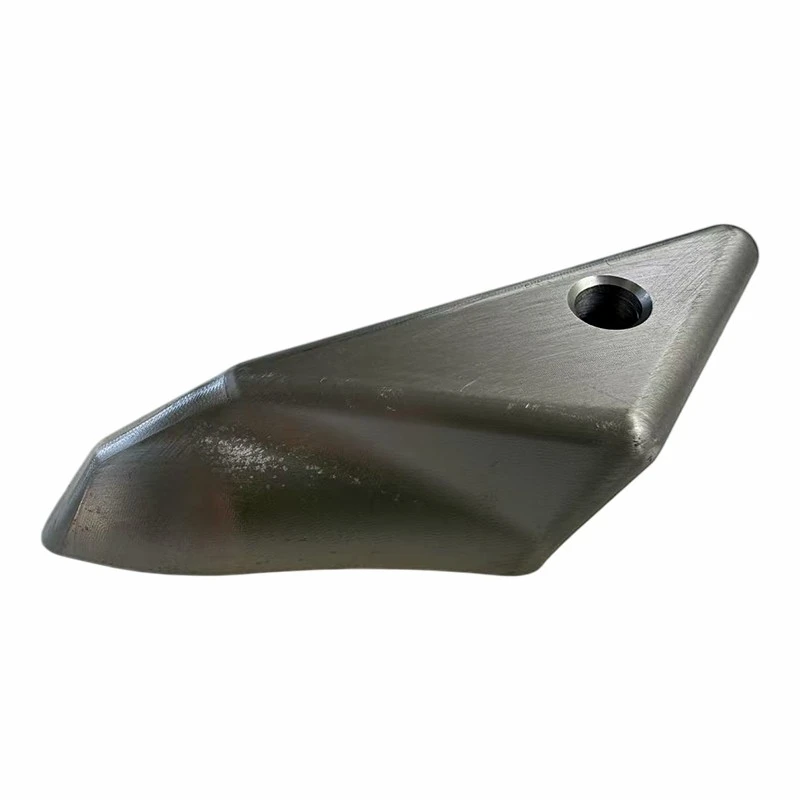

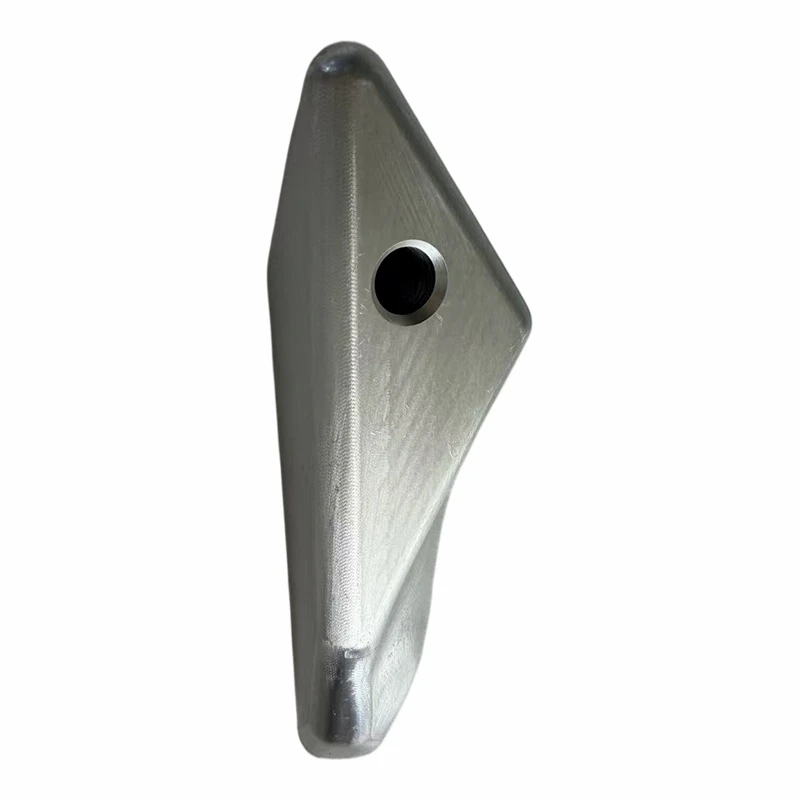

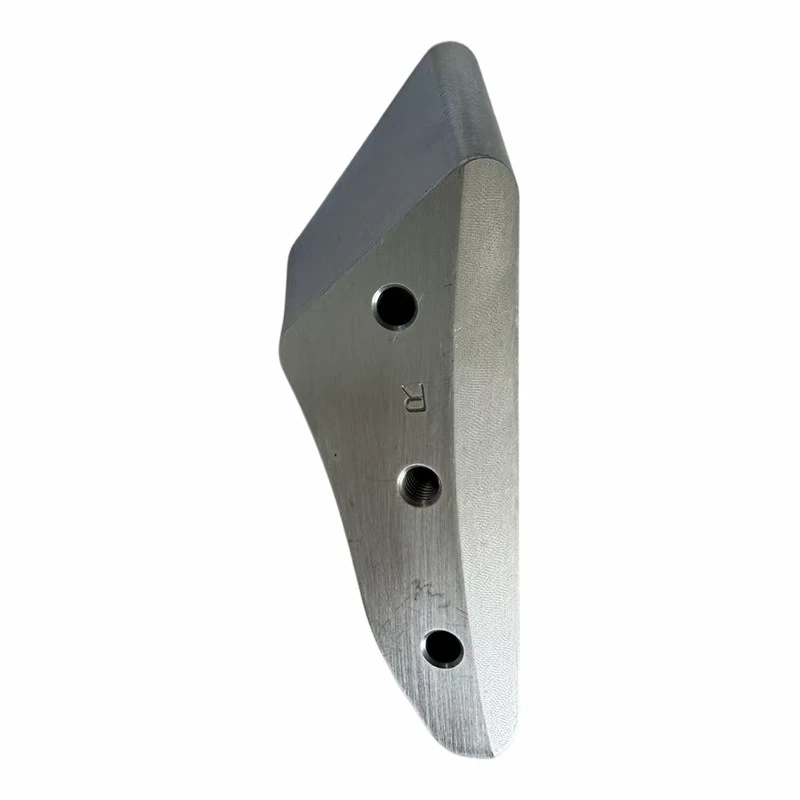

Articulated Bracket Connector

This is a custom mechanical structural component precision-machined from aluminum alloy on a five-axis CNC milling center. It can serve as a dual motor mounting base, an automation equipment module base, an industrial camera dual-station mounting plate, or a drone dual-power motor bracket, depending on the specific design and application.

Share to

Send Inquiry

Material and craftsmanship

The appearance features a brushed metal texture, available in two common materials:

Aluminum alloy models: 6061/7075, CNC milling integrated molding, lightweight, used for automation and new energy equipment;

Steel material: 45# steel/stainless steel, polished after machining, with stronger load-bearing capacity, suitable for excavators, agricultural machinery, and forklift mechanical arm components.

The overall process involves CNC milling of irregular surfaces and bevel edges, precision boring of mounting holes, and chamfering and deburring of edges.

Structure and purpose

Single precision through hole: pin shaft installation position, used for hinging and shaft connection;

Streamlined irregular surface and thickened solid structure: balancing lightweight and structural strength, while distributing stress;

Functional orientation: It belongs to the category of articulated support connectors.

Construction machinery: excavator attachment bracket, agricultural machinery arm bumper, forklift limit support ear;

Automation equipment: assembly line turnover bracket, equipment base support block;

New energy: Battery pack installation support, equipment rack connection block.

Processing characteristics (suitable for your CNC machining business)

Irregular surfaces and multi-angle inclined surfaces require three-axis/five-axis machining. Strict requirements are placed on hole size and surface finish. Surface treatments such as anodizing, blackening, and polishing can be applied as needed. Non-standard sizes can be customized.
